SE3 slew drive for solar panel
A slew drive is essential for solar tracking systems, enabling panels to follow the sun for maximum energy capture. There are several types of slew drives: worm gear, helical gear, and hydraulic. Worm gear drives offer high torque and self-locking capabilities, ideal for single-axis trackers but are less efficient. Helical gear drives are more efficient and quieter, suitable for dual-axis trackers, though they may need additional braking.
A slew drive is a specialized mechanical device commonly used in solar panel systems to enable precise rotational movement. It consists of a worm gear, an enclosed housing, a slewing ring bearing, and typically an electric or hydraulic motor. Slew drives offer a high torque output and are ideal for applications requiring high load capacity and accuracy.
In the context of solar panels, slew drives are integral to solar tracking systems, which help maximize energy capture by keeping the panels oriented towards the sun throughout the day. There are generally two types of solar tracking systems where slew drives are used:
- Single-Axis Trackers: These trackers rotate around one axis, usually aligned north-south, allowing the solar panels to follow the sun’s path from east to west.
- Dual-Axis Trackers: These trackers allow movement along two axes, providing even greater precision by adjusting both the horizontal and vertical orientation of the solar panels. This type of tracking maximizes energy absorption by maintaining optimal perpendicular alignment to the sun’s rays at all times.

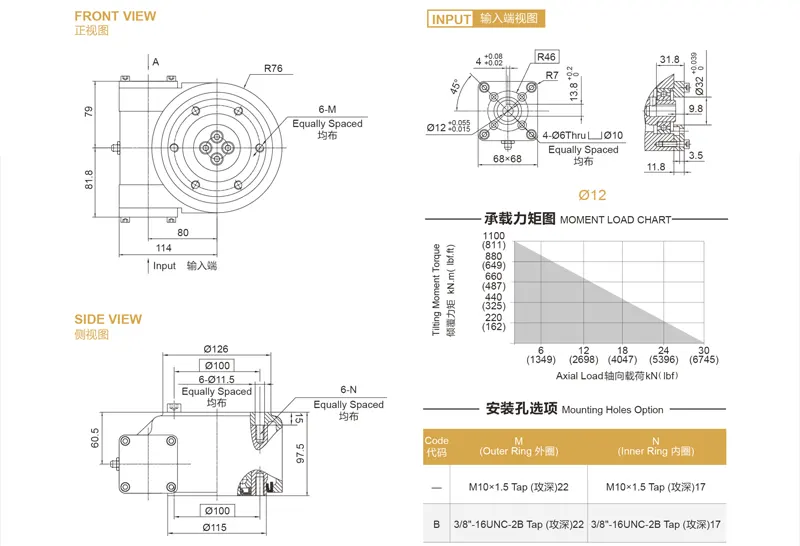

| Model | Output Torque | Tilting Moment Torque | Holding Torque | Gear Ratio | Tracking Precision | Weight |
| SE3 | 400 N.m | 1100 N.m | 2000 N.m | 62:1 | 0.2° | 12kg |
| SE3 | 295 lbf.ft | 811 lbf.ft | 1476 lbf.ft | 62:1 | 0.2° | 12kg |
Key Benefits of Slew Drives in Solar Applications:
- Increased Energy Efficiency: By optimizing the angle of the solar panels relative to the sun, slew drives help maximize energy production.
- Durability and Reliability: Built to withstand harsh environmental conditions, slew drives ensure long-term operation and minimal maintenance.
- Compact Design: Their compact nature allows for easy integration into various tracking systems without taking up excessive space.
- Choosing the Right Slew Drive:When selecting a slew drive for solar panels, consider factors such as:
- Load Capacity: Ensure the drive can handle the weight and wind load on the solar panels.
- Precision: Higher precision drives are necessary for dual-axis systems to achieve optimal positioning.
- Durability: Look for drives with robust sealing and corrosion-resistant materials to withstand outdoor conditions.
- Power Source: Choose between electric or hydraulic motors based on availability and specific requirements.
