]]> An external-toothed slewing ring is a specialized type of bearing engineered for heavy-duty rotational applications. It consists of a large circular ring with external gear teeth machined onto its circumference. These gear teeth enable controlled rotation when engaged with a pinion or other driving mechanism.

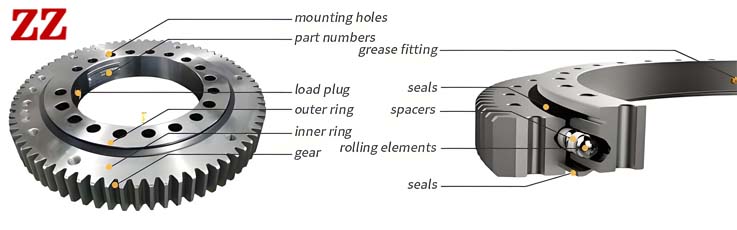

The design typically comprises three main components:

Outer Ring: Constructed from high-strength steel or alloy, the outer ring provides robust support for heavy loads and ensures durability.

Gear Teeth: Machined onto the outer diameter, the gear teeth facilitate controlled rotation and precise positioning when coupled with a pinion or gear mechanism.

Inner Ring: Supporting axial and radial loads, the inner ring ensures stability and smooth rotation. It often integrates mounting holes or other features for easy installation.

Applications:

External-toothed slewing rings are indispensable in various industries and machinery, including:

Construction Machinery: Cranes, excavators, and drilling rigs rely on slewing rings for heavy load-bearing and rotational movement.

Renewable Energy: Wind turbines and solar trackers utilize slewing rings to orient components for optimal energy capture.

Material Handling: Conveyor systems, turntables, and rotary tables employ slewing rings for efficient material distribution.

Aerospace and Defense: Radar systems, missile launchers, and satellite tracking systems benefit from the precision and reliability of slewing rings.



single-row slewing ring

No. Ring Dimension Dimension of Mounting hole Gear Parameter N.W
kg
Through Thread
D dn H h Du Dn φ n Du Dn d1 T n z m d da L X
mm mm mm mm
QW.400.16             QW.400.16A 480 318 60 10 448 352 15 12 448 352 M14 40 12 143   125 3.5     4 500.5 500 504   504 44 0.5 45     46
QW.450.16             QW.450.16A 530 368 60 10 498 402 15 12 498 402 M14 40 12 157   138 3.5      4 549.5 552 553   556 44 0.5 51     52
QW.500.16             QW.500.16A 580 418 60 10 548 452 15 14 548 452 M14 40 14 150   121 4       5 600   605 604   610 44 0.5 58     58
QW.560.16             QW.560.16A 640 478 60 10 608 512 15 14 608 512 M14 40 14 165   133 4       5 660   665 664   670 44 0.5 65     66
QW.560.20             QW.560.20A 654 464 70 10 618 502 17 14 618 502 M16 30 14 169   136 4       5 676   680 680   685 50 0.5 78     79
QW.630.20             QW.630.20A 724 534 70 10 688 572 17 16 688 572 M16 30 16 186   150 4       5 744   750 748   755 50 0.5 86     88
QW.710.20             QW.710.20A 804 614 70 10 768 652 17 18 768 652 M16 30 18 166   139 5       6 830   834 835   840 50 0.5 99    101
QW.800.20             QW.800.20A 894 704 70 10 858 742 17 20 858 742 M16 30 20 154   116 6       8 924   928 930   936 50 0.5 114   114
QW.800.25             QW.800.25A 904 692 78 10 864 736 22 18 864 736 M20 36 18 156   118 6       8 936    944 942   952 58 0.5 143   147
QW.900.25             QW.900.25A 1004 792 78 10 964 836 22 20 964 836 M20 36 20 130   105 8      10 1040 1050 1048 1060 58 0.5 162   168
QW.1000.25             QW.1000.25A 1104 892 78 10 1064 936 22 24 1064 936 M20 36 24 143   115 8      10 1144 1150 1152 1160 58 -0.5 182   185
QW.1000.32             QW.1000.32A 1120 876 90 10 1074 926 24 24 1074 926 M22 40 24 144   116 8      10 1152 1160 1160 1170 70 -0.5 227   232
QW.1120.32             QW.1120.32A 1240 996 90 10 1194 1046 24 28 1194 1046 M22 40 28 129   108 10     12 1290 1296 1300 1308 70 -0.5 272   275
QW.1250.32             QW.1250.32A 1370 1126 90 10 1324 1176 24 32 1324 1176 M22 40 32 142   119 10     12 1420 1428 1430 1440 70 -0.5 302   309
QW.1400.32             QW.1400.32A 1520 1276 90 10 1474 1326 24 36 1474 1326 M22 40 36 131   113 12     14 1572 1582 1584 1596 70 -0.5 337   347
QW.1250.40             QW.1250.40A 1390 1108 102 12 1336 1164 26 32 1474 1164 M24 45 32 144   120 10     12 1440 1440 1450 1452 80 -0.5 396   392
QW.1400.40             QW.1400.40A 1540 1258 102 12 1486 1314 26 36 1486 1314 M24 45 36 133   114 12     14 1596 1596 1608 1610 80 -0.5 448   443
QW.1600.40            QW.1600.40A 1740 1458 102 12 1686 1514 26 40 1686 1514 M24 45 40 150   129 12     14 1800 1806 1812 1820 80 -0.5 528   534
QW.1800.40             QW.1800.40A 1940 1658 102 12 1886 1714 26 44 1886 1714 M24 45 44 143   126 14     16 2002 2016 2016 2032 80 -0.5 583   607
QW.1600.50             QW.1600.50A 1762 1434 124 12 1704 1496 30 40 1704 1496 M27 50 40 151    130 12     14 1812 1820 1824 1834 100 -0.5 714    727
QW.1800.50            QW.1800.50A 1964 1634 124 12 1904 1696 30 44 1904 1696 M27 50 44 145   127 14     16 2030  2032 2044 2048 100 -0.5 845   843
QW.2000.50             QW.2000.50A 2162 1834 124 12 2104 1896 30 48 2104 1896 M27 50 48 139   124 16     18 2224 2232 2240 2250 100 -0.5 912   927
QW.2240.50             QW.2240.50A 2402 2074 124 12 2344 2136 30 54 2344 2136 M27 50 54 154   138 16     18 2464  2484 2480  2502 100 -0.5 1020 1078
QW.2500.50            QW.2500.50A 2662 2334 124 12 2604 2396 30 60 2604 2396 M27 50 60 152   137 18     20 2736 2740 2754 2760 100 -0.5 1171 1175
QW.2500.60             QW.2500.60A 2696 2304 150 14 2626 2374 33 60 2626 2374 M30 56 60 154   139 18     20 2772 2780 2790 2800 122 -0.5 1677 1701
QW.2800.60             QW.2800.60A 2992 2604 150 14 2926 2674 33 66 2926 2674 M30 56 66 170   154 18     20 3060 3080 3078 3100 122 -0.5 1817 1904
QW.3150.60            QW.3150.60A 3342 2954 150 14 3276 3024 33 72 3276 3024 M30 56 72 171   156 20     22 3420 3432 3440 3454 122 -0.5 2087 2139
QW.3550.60             QW.3550.60A 3742 3354 150 14 3676 3424 33 78 3676 3424 M30 56 78 191   154 20     25 3820 3850 3840 3875 122 -0.5 2355 2500
QW.4000.60             QW.4000.60A 4200 3804 150 14 4126 3874 33 80 4126 3874 M30 56 80 195   172 22     25 4290 4300 4312 4325 122 -0.5 2787 2827

The post External-toothed slewing ring appeared first on ZZ.

]]> slewing bearing manufacturing process, china slewing ring gear https://www.precisionslewingbearing.com/product/china-slewing-ring-gear/ Thu, 23 Dec 2021 08:14:47 +0000 http://www.precisionslewingbearing.com/?post_type=product&p=21324 slewing bearing manufacturing process, china slewing ring gear, ZZ Slewing Bearing provide different kinds of surface treatment: Such as Zinc coating, Sand blast, Painting, oil protecting, barffing etc, which will guarantee the slewing bearing with long durability.

The post slewing bearing manufacturing process, china slewing ring gear appeared first on ZZ.

]]> slewing bearing

We indicate following 8 kinds of slewing bearing, while approaching the customers’ demands.

If you have more questions please contact our Engineers here.

ZZ Slewing Bearing provide different kinds of surface treatment: Such as Zinc coating, Sand blast, Painting, oil protecting, barffing etc, which will guarantee the slewing bearing with long durability.china slewing ring gear


Name 010.30.560
Weight(kg) 92
Outer Dimensions(mm)
D 662mm
d 458mm
H 80mm
Mounting Hole Dimension
D1 626mm
D2 494mm
dn1 dn2 18
dm1 dm2 M16
L 32
n 20
Structure Dimension
n1 4
D3 561mm
d1 558mm
H1 70mm
h 10mm

The post slewing bearing manufacturing process, china slewing ring gear appeared first on ZZ.

]]> Slewing ring turntable,Slewing ring bearing with external gear https://www.precisionslewingbearing.com/product/external-gear-ring/ Thu, 23 Dec 2021 06:42:34 +0000 http://www.precisionslewingbearing.com/?post_type=product&p=21300 Slewing ring turntable,Slewing ring bearing with external gear, High speeds, high loads and salty environment require strong and precise components. The ZZ slewing rings is the perfect answer to the offshore industry.

The post Slewing ring turntable,Slewing ring bearing with external gear appeared first on ZZ.

]]> The external-tooth slewing bearing is a specialized bearing designed for supporting rotational movements, characterized by the presence of gears on its outer ring. This design is widely employed in engineering and industrial applications where high torque and precise positioning are essential. Here are the key features and parameters of an external-tooth slewing bearing:

The external-tooth slewing bearing

External gear slewing bearing

No. Curve Dimensions Fixing Holes Gear Parameter Load N.W
(kg)
De
(mm)		 de
(mm)		 di
（mm）		 Di
（mm）		 Dx
（mm）		 He
（mm）		 Hi
（mm）		 Ht
（mm）		 Hd
（mm）		 Fe
(mm）		 Fi
（-）		 N V
(mm）		 L W
（-）		 m
（mm）		 Z
（-）		 xm
（mm）		 Dp
（mm）		 fznorm
(KN)		 fzmax
(KN)
ZZ-SL-W.20.307 1 432 309 305 224 394 83 83 92 50 360 254 16 17 25 12 6 70 - 420 20.4 40.8 51
ZZ-SL-W.20.383 2 504 385 381 300 466 83 83 92 75 436 330 16 17 25 12 8 61 - 488 40.8 81.6 64
ZZ-SL-W.25.475 3 595 477 473 382 565 88 88 98 50 540 410 24 17 25 14 5 117 - 585 17 34 85
ZZ-SL-W.25.575 4 712 577 573 470 670 88 88 98 75 640 508 24 17 25 9 8 87 - 696 40.8 81.6 123
ZZ-SL-W.20.752 5 864 754 750 678 833 83 83 92 76 800 706 36 17 25 9 6 142 - 852 31.01 62.02 114
ZZ-SL-W.25.821 6 979 823 819 718 935 92 92 102 86 893 753 36 21 31 15 10 94 +11 940 70.63 141.26 200
ZZ-SL-W.20.968 7 1080 970 966 893 1042 83 83 92 76 1015 922 30 17 25 10 8 133 - 1064 41.34 82.69 148
ZZ-SL-W.25.1077 8 1200 1079 1075 976 1163 88 88 98 77 1135 1012 36 19 - - 8 148 - 1184 41.89 83.78 210
ZZ-SL-W.30.1215 9 1380 1218 1212 1095 1330 98 98 108 90 1290 1135 48 23 34 16 10 136 - 1360 61.2 122.4 325
ZZ-SL-W.20.383 1 504 385 381 300 394 83 83 92 75 436 330 16 17 25 12 8 61 - 488 48 96 64
ZZ-SL-W.25.475 2 614.4 477 473 378 565 88 88 98 80 540 410 24 19 28 14 8 74 +4 592 51.2 102.4 98
ZZ-SL-W.25.575 3 695 577 573 470 670 83 83 92 58 640 508 30 17 25 13 5 136 +2.5 680 23.2 46.4 104
ZZ-SL-W.25.980 4 1144 982 978 870 1096 96 96 110 88 1050 910 36 21 31 12 10 111 +8 1110 85.02 170.05 262
ZZ-SL-W.30.1117 5 1289 1120 1114 985 1240 98 98 108 83 1198 1035 40 21 31 18 10 125 +10.5 1250 80.19 160.39 332
ZZ-SL-W.30.1215 6 1380 1218 1212 1095 1330 98 98 108 90 1290 1135 36 23 34 16 10 136 - 1360 72 144 334
ZZ-SL-W.30.1249 7 1476 1252 1246 1085 1415 101 101 110 89 1350 1150 48 26 37 23 10 144 +8.6 1440 85.99 171.98 502
ZZ-SL-W.35.1249 1 1472 1252 1246 1085 1406 134 134 144 115 1350 1150 36 28 41 27 14 102 +9.1 1428 147.78 295.56 640
ZZ-SL-W.30.1391 2 1603 1394 1388 1208 - 110 110 120 110 1500 1280 40 29 - 　 10 157 +7.5 1570 100.97 201.93 636
ZZ-SL-W.40.1402 3 1604 1405 1399 1208 1570 138 134 148 93 1500 1280 48 31 46 24 10 157 +7 1570 147.78 295.56 710
ZZ-SL-W.25.1391 4 1605 1394 1388 1208 1550 116 116 130 96 1494 1280 48 29 41 22 12 130 +12 1560 105.74 211.48 623
ZZ-SL-W.40.1390 5 1634 1393 1387 1208 - 138 134 148 138 1500 1280 48 31 46 24 14 113 +14 1582 177.33 354.67 800
ZZ-SL-W.30.1578 6 1808 1581 1575 1404 - 110 110 120 110 1680 1476 40 29 - - 10 178 +5 1780 100.97 201.93 754
ZZ-SL-W.35.1578 7 1805 1581 1575 1433 - 140 140 156 140 1671 1485 60 28 41 15 16 109 +16.9 1744 205.6 411.21 810
  • Gear Design:

The distinctive feature of an external-tooth slewing bearing is the presence of gears on its outer race. These gears are typically driven by mechanisms such as racks, motors, or other power sources, providing the bearing with self-driving capability.
Inner Diameter, Outer Diameter, and Width:

Similar to other bearings, the inner diameter, outer diameter, and width are basic geometric parameters of the external-tooth slewing bearing. These parameters determine the bearing’s dimensions and adaptability.

  • Load-Carrying Capacity:

External-tooth slewing bearings are designed to withstand substantial radial and axial loads, making them particularly useful in applications requiring support for large structures or rotational movements of equipment.
Gear Module and Pressure Angle:

The gear module is a measure of gear size, while the pressure angle describes the tooth profile. These parameters influence the transmission efficiency and precision of the bearing.







The post Slewing ring turntable,Slewing ring bearing with external gear appeared first on ZZ.

]]> ZZ Hot Sale High Quality Crane Swing Bearing Turntable Bearing https://www.precisionslewingbearing.com/product/china-slewing-bearing/ Wed, 08 Dec 2021 03:28:01 +0000 http://www.precisionslewingbearing.com/?post_type=product&p=21214 Crane slewing bearings, also known as slew bearings or slew bearings, are critical components in the design of cranes and other heavy machinery that require rotation about a central axis. The main function of the slewing bearing is to support the upper structure of the crane (such as the jib and cab) and make it rotate smoothly.

The post ZZ Hot Sale High Quality Crane Swing Bearing Turntable Bearing appeared first on ZZ.

]]> Compared with standard bearings, the ZZ slewing ring is a good solution to reduce the assembling time, to simplify the structure and to increase the capacity of the whole system.



Slewing bearing manufacturer, ZZ slewing bearing

Contact us for the latest slewing bearing price.

Crane slewing bearings, also known as slew bearings or slew bearings, are critical components in the design of cranes and other heavy machinery that require rotation about a central axis. The main function of the slewing bearing is to support the upper structure of the crane (such as the jib and cab) and make it rotate smoothly.

Online selection catalog: https://www.precisionslewingbearing.com/query/index.php?lang=en

Internal gear slewing bearing for crane

No. Ring Dimension Dimension of Mounting hole Gear Parameter N.W
kg
Through Thread
D dn H h Du Dn φ n Du Dn d1 T n z m d da L X
mm mm mm mm
QN.400.16             QN.400.16A 482 320 60 10 448 352 15 12 448 352 M14 28 12 86     75 3.5     4 301   300 297.5 296 44 0.5 42     43
QN.450.16             QN□450.16A 532 370 60 10 498 402 15 12 498 402 M14 28 12 100    87 3.5      4 350   348 346.5 344 44 0.5 50     51
QN.500.16             QN.500.16A 582 420 60 10 548 452 15 14 548 452 M14 28 14 100    79 4       5 400   395 396   390 44 0.5 57      57
QN.560.16             QN.560.16A 642 480 60 10 608 512 15 14 608 512 M14 28 14 115    91 4       5 460   455 456   450 44 0.5 64     65
QN.560.20             QN.560.20A 656 468 70 10 618 502 17 14 618 502 M16 30 14 111    88 4       5 444   440 440   435 50 0.5 76     77
QN.630.20             QN.630.20A 726 538 70 10 688 572 17 16 688 572 M16 30 16 129   102 4       5 516   510 512   505 50 0.5 84     86
QN.710.20             QN.710.20A 806 618 70 10 768 652 17 18 768 652 M16 30 18 118    98 5       6 590   588 585   582 50 0.5 97     97
QN.800.20             QN.800.20A 896 708 70 10 858 742 17 20 858 742 M16 30 20 113    84 6       8 678   672 672   664 50 0.5 110   111
QN.800.25             QN.800.25A 908 694 78 10 864 736 22 18 864 736 M20 36 18 110    82 6       8 660   656 654   648 58 0.5 142   142
QN.900.25             QN.900.25A 1008 794 78 10 964 836 22 20 964 836 M20 36 20 94     75 8      10 752   750 744   740 58 0.5 163   162
QN□1000.25             QN□1000.25A 1108 894 78 10 1064 936 22 24 1064 936 M20 36 24 107    85 8      10 856   850 848   840 58 0.5 178   179
QN.1000.32             QN.1000.32A 1124 880 90 10 1074 926 24 24 1074 926 M22 40 24 105    84 8      10 840   840 832   830 70 0.5 230   227
QN.1120.32             QN.1120.32A 1244 1000 90 10 1194 1046 24 28 1194 1046 M22 40 28 95     79 10     12 950   948 940   936 70 0.5 263   262
QN.1250.32             QN.1250.32A 1374 1130 90 10 1324 1176 24 32 1324 1176 M22 40 32 108    90 10     12 1080  1080 1070  1068 70 0.5 294   290
QN.1400.32             QN.1400.32A 1524 1280 90 10 1474 1326 24 36 1474 1326 M22 40 36 102    87 12     14 1224  1218 1212   1204 70 0.5 333   336
QN.1250.40             QN.1250.40A 1394 1110 102 12 1336 1164 26 32 1336 1164 M24 45 32 106    88 10     12 1060  1056 1050  1044 80 0.5 388   388
QN.1400.40             QN.1400.40A 1544 1260 102 12 1486 1314 26 36 1486 1314 M24 45 36 100    86 12     14 1200   1204 1188  1190 80 0.5 444    434
QN.1600.40            QN.1600.40A 1744 1460 102 12 1686 1514 26 40 1686 1514 M24 45 40 117   100 12     14 1404  1400 1392  1386 80 0.5 509   511
QN.1800.40             QN.1800.40A 1944 1660 102 12 1886 1714 26 44 1886 1714 M24 45 44 114    99 14     16 1596 1584 1582 1568 80 0.5 576   591
QN.1600.50             QN.1600.50A 1766 1438 124 12 1704 1496 30 40 1704 1496 M27 50 40 115    98 12     14 1380 1372 1368  1358 100 0.5 714   723
QN.1800.50            QN.1800.50A 1966 1638 124 12 1904 1696 30 44 1904 1696 M27 50 44 113    98 14     16 1582 1568 1568 1552 100 0.5 794   818
QN.2000.50             QN.2000.50A 2166 1842 124 12 2104 1896 30 48 2104 1896 M27 50 48 111    98 16     18 1776 1764 1760 1746 100 0.5 891   913
QN.2240.50             QN.2240.50A 2406 2078 124 12 2344 2136 30 54 2344 2136 M27 50 54 125    111 16     18 2000 1998 1984 1980 100 0.5 1044 1041
QN.2500.50            QN.2500.50A 2666 2342 124 12 2604 2396 30 60 2604 2396 M27 50 60 126    113 18     20 2268  2260 2250  2240 100 0.5 1132  1148
QN.2500.60             QN.2500.60A 2696 2308 150 14 2626 2374 33 60 2626 2374 M30 56 60 124    111 18     20 2232 2220 2214 2200 122 0.5 1621 1654
QN.2800.60             QN.2800.60A 2996 2608 150 14 2926 2674 33 66 2926 2674 M30 56 60 140   126 18     20 2520 2520 2502 2500 122 0.5 1871 1857
QN.3150.60            QN.3150.60A 3346 2958 150 14 3276 3024 33 72 3276 3024 M30 56 72 143   130 20     22 2860 2860 2840 2838 122 0.5 2144 2129
QN.3550.60             QN.3550.60A 3746 3358 150 14 3676 3424 33 78 3676 3424 M30 56 78 163   130 20     25  3260 3250 3240 3225 122 0.5 2425 2437
QN.4000.60             QN.4000.60A 4196 3808 150 14 4126 3874 33 80 4126 3874 M30 56 80 169   148 22     25 3718 3700 3696 3675 122 0.5 2683 2763

The post ZZ Hot Sale High Quality Crane Swing Bearing Turntable Bearing appeared first on ZZ.

]]> Without teeth slewing ring turntable https://www.precisionslewingbearing.com/product/winthout-teeth-slewing-ring/ Thu, 02 Dec 2021 07:15:56 +0000 http://www.precisionslewingbearing.com/?post_type=product&p=20842 The without teeth slewing ring transmits loads from a turning part towards the fixed part of a mechanism. The applied stresses of the rolling elements on the raceways are calculated according to the Hertz laws and the modern criteria of plasticity. ZZ carries out localized hardening treatments which makes it possible to satisfy these criteria just as well in terms of surface pressure as well as subsurface fatigue.

The post Without teeth slewing ring turntable appeared first on ZZ.

]]> without teeth slewing ring bearing high quality

For the slewing ring manufacture, ZZ selects the best material specifications to suit most foreseen usages.These materials are manufactured by approved steel works.Inspections are carried out at each significant step of manufacturing what makes it possible to warrant the quality of the products. Most of the time, we select high-grade Carbon steels which permit us to meet all operating requirements.Core hardening and tempering are carried out when the applied stresses dictate these processes.

No. Curve Ring Dimension Dimension of Mounting hole N.W
kg
Through(Type A) Thread（Typr B、C、D）
D dn H h Du Dn φ n Du Dn d1 T n
mm mm mm
QU.400.16 1 482 318 60 10 448 352 15 12 448 352 M14 28 12 42
QU.450.16 2 532 368 60 10 498 402 15 12 498 402 M14 28 12 47
QU.500.16 3 582 418 60 10 548 452 15 14 548 452 M14 28 14 53
QU.560.16 4 642 478 60 10 608 512 15 14 608 512 M14 28 14 58
QU.560.20 5 656 464 70 10 618 502 17 14 618 502 M16 30 14 72
QU.630.20 6 726 534 70 10 688 572 17 16 688 572 M16 30 16 80
QU.710.20 7 806 614 70 10 768 652 17 18 768 652 M16 30 18 91
QU.800.20 8 896 704 70 10 858 742 17 20 858 742 M16 30 20 102
QU.800.25 9 908 692 78 10 864 736 22 18 864 736 M20 36 18 130
QU.900.25 10 1008 792 78 10 964 836 22 20 964 836 M20 36 20 146
QU.1000.25 11 1108 892 78 10 1064 936 22 24 1064 936 M20 36 24 162
QU.1000.32 12 1124 876 90 10 1074 926 24 24 1074 926 M22 40 24 212
QU.1120.32 13 1244 996 90 10 1194 1046 24 28 1194 1046 M22 40 28 237
QU.1250.32 14 1374 1126 90 10 1324 1176 24 32 1324 1176 M22 40 32 264
QU.1400.32 15 1524 1276 90 10 1474 1326 24 36 1474 1326 M22 40 36 285
QU.1250.40 16 1394 1108 102 12 1336 1164 26 32 1336 1164 M24 45 32 351
QU.1400.40 17 1544 1258 102 12 1486 1314 26 36 1486 1314 M24 45 36 393
QU.1600.40 18 1744 1458 102 12 1686 1514 26 40 1686 1514 M24 45 32 455
QU.1800.40 19 1944 1658 102 12 1886 1714 26 44 1886 1714 M24 45 44 507
QU.1600.50 20 1766 1434 124 12 1704 1496 30 40 1704 1496 M27 50 40 647
QU.1800.50 21 1966 1634 124 12 1904 1696 30 44 1904 1696 M27 50 44 730
QU.2000.50 22 2166 1834 124 12 2104 1896 30 48 2104 1896 M27 50 48 812
QU.2240.50 23 2406 2074 124 12 2344 2136 30 54 2344 2136 M27 50 54 909
QU.2500.50 24 2666 2334 124 12 2604 2396 30 60 2604 2396 M27 50 60 1015
QU.2500.60 25 2696 2304 150 14 2626 2374 33 60 2626 2374 M30 56 60 1457
QU.2800.60 26 2996 2604 150 14 2926 2674 33 66 2926 2674 M30 56 66 1634
QU.3150.60 27 3346 2954 150 14 3276 3024 33 72 3276 3024 M30 56 72 1843
QU.3550.60 28 3746 3354 150 14 3676 3424 33 78 3676 3424 M30 56 78 2082
QU.4000.60 29 4196 3804 150 14 4126 3874 33 80 4126 3874 M30 56 80 2360

The post Without teeth slewing ring turntable appeared first on ZZ.

]]> slewing bearing selection-Slew bearing manufacturers & suppliers https://www.precisionslewingbearing.com/product/slewing-bearing-selection/ Wed, 01 Dec 2021 08:43:33 +0000 http://www.precisionslewingbearing.com/?post_type=product&p=20805 Each type of slewing bearing corresponds to a load-bearing capacity curve, which can help users make preliminary selections of slewing bearings. There are two types of curves in the graph. One is the static load curve, which represents the maximum load that the slewing ring can bear when it remains stationary. The other is the limit load curve of slewing bearing bolts, which is determined when the clamping length of the bolt is 5 times the nominal diameter of the bolt, and the pre-tightening force is 70% of the yield limit of the bolt material.

The post slewing bearing selection-Slew bearing manufacturers & suppliers appeared first on ZZ.

]]> slewing bearing selection

Selection of structure type: There are four types of commonly used slewing bearings: single-row ball type, cross-roller type, double-row ball type, and three-row column type.
According to our experience and calculations, we have the following conclusions:

Slewing bearing installation
When Do ＜ 1800, single volleyball is the preferred type;
When Do＞1800, three-row column slewing ring is preferred.
If the slewing ring with the same external dimensions, the load capacity of the single-row ball type is higher than that of the cross roller type and the double-row reducing type, the Q series single-row ball type slewing ring has a more compact size, a lighter weight, and a better cost performance. The preferred series of single volleyball style. slewing bearing selection



The post slewing bearing selection-Slew bearing manufacturers & suppliers appeared first on ZZ.

]]> Helical Gear Precision Slewing Bearing For Medical Equipment https://www.precisionslewingbearing.com/product/slewing-bearing-for-medical-equipment/ Wed, 24 Nov 2021 03:47:16 +0000 http://www.precisionslewingbearing.com/?post_type=product&p=20697 Slewing bearings play a vital role in medical equipment, and their applications cover many key areas. In medical imaging equipment, such as CT scanners, MRI machines, and X-ray machines, slewing bearings ensure that imaging components can be accurately positioned and achieve accurate image capture by providing smooth rotational motion.

The post Helical Gear Precision Slewing Bearing For Medical Equipment appeared first on ZZ.

]]> Slewing bearings are versatile components that find applications in various industries, including medical equipment. In the medical field, these bearings are often employed in devices where rotational movement or positioning is required. Here are some aspects to consider when using slewing bearings in medical equipment:

Toothless slewing bearing

  • Imaging Devices
  • Surgical Equipment
  • Patient Positioning Systems
  • Rehabilitation Devices
  • Diagnostics and Laboratory Equipment
  • Material Handling in Hospitals

No. Curve Ring Dimension Dimension of Mounting hole Gear Parameter N.W
kg
Through Thread
D dn H h Du Dn φ n Du Dn d1 T n z m d da L X
mm mm mm mm
Jn.400.12             Jn.400.12A 1 482 320 60 10 448 352 15 12 448 352 M14 28 12 86
75		 3.5
4		 301
300		 297.5
296		 44 0.5 42
43
Jn.450.12             Jn.450.12A 2 532 370 60 10 498 402 15 12 498 402 M14 28 12 100
87		 3.5
4		 350
348		 346.5
344		 44 0.5 50
51
Jn.500.12             Jn.500.12A 3 582 420 60 10 548 452 15 14 548 452 M14 28 14 100
79		 4
5		 400
395		 396
390		 44 0.5 57
57
Jn.560.14             Jn.560.14A 4 642 480 60 10 608 512 15 14 608 512 M14 28 14 115
91		 4
5		 460
455		 456
450		 44 0.5 64
65
Jn.630.14             Jn.630.14A 5 656 468 70 10 618 502 17 14 618 502 M16 30 14 111
88		 4
5		 444
440		 440
435		 50 0.5 76
77
Jn.710.14             Jn.710.14A 6 726 538 70 10 688 572 17 16 688 572 M16 30 16 129
102		 4
5		 516
510		 512
505		 50 0.5 84
86
Jn.710.14             Jn.710.14A 7 806 618 70 10 768 652 17 18 768 652 M16 30 18 118
98		 5
6		 590
588		 585
582		 50 0.5 97
97
Jn.800.14             Jn.800.14A 8 896 708 70 10 858 742 17 20 858 742 M16 30 20 113
84		 6
8		 678
672		 672
664		 50 0.5 110
111
Jn.800.18             Jn.800.18A 9 908 694 78 10 864 736 22 18 864 736 M20 36 18 110
82		 6
8		 660
656		 654
648		 58 0.5 142
142
Jn.900.18             Jn.900.18A 10 1008 794 78 10 964 836 22 20 964 836 M20 36 20 94
75		 8
10		 752
750		 744
740		 58 0.5 163
162
Jn.1000.18             Jn.1000.18A 11 1108 894 78 10 1064 936 22 24 1064 936 M20 36 24 107
85		 8
10		 856
850		 848
840		 58 0.5 178
179
Jn.1000.22             Jn.1000.22A 12 1124 880 90 10 1074 926 24 24 1074 926 M22 40 24 105
84		 8
10		 840
840		 832
830		 70 0.5 230
227
Jn.1120.22            Jn.1120.22A 13 1244 1000 90 10 1194 1046 24 28 1194 1046 M22 40 28 95
79		 10
12		 950
948		 940
936		 70 0.5 263
262
Jn.1250.22            Jn.1250.22A 14 1374 1130 90 10 1324 1176 24 32 1324 1176 M22 40 32 108
90		 10
12		 1080
1080		 1070
1068		 70 0.5 294
290
Jn.1400.22            Jn.1400.22A 15 1524 1280 90 10 1474 1326 24 36 1474 1326 M22 40 36 102
87		 12
14		 1224
1218		 1212
1204		 70 0.5 333
336
Jn.1250.28            Jn.1250.28A 16 1394 1110 102 12 1336 1164 26 32 1336 1164 M24 45 32 106
88		 10
12		 1060
1056		 1050
1044		 80 0.5 388
388
Jn.1400.28            Jn.1400.28A 17 1544 1260 102 12 1486 1314 26 36 1486 1314 M24 45 36 100
86		 12
14		 1200
1204		 1188
1190		 80 0.5 444
434
Jn.1600.28            Jn.1600.28A 18 1744 1460 102 12 1686 1514 26 40 1686 1514 M24 45 40 117
100		 10
14		 1404
1400		 1392
1386		 80 0.5 509
511
Jn.1800.28            Jn.1800.28A 19 1944 1660 102 12 1886 1714 26 44 1886 1714 M24 45 44 114
99		 14
16		 1596
1584		 1582
1568		 80 0.5 576
591
Jn.1600.36            Jn.1600.36A 20 1766 1438 124 12 1704 1496 30 40 1704 1496 M27 50 40 115
98		 12
14		 1380
1372		 1368
1358		 100 0.5 714
723
Jn.1800.36            Jn.1800.36A 21 1966 1638 124 12 1904 1696 30 44 1904 1696 M27 50 44 113
98		 14
16		 1582
1568		 1568
1552		 100 0.5 794
818
Jn.2000.36            Jn.2000.36A 22 2166 1842 124 12 2104 1896 30 48 2104 1896 M27 50 48 111
98		 16
18		 1776
1764		 1760
1746		 100 0.5 891
913
Jn.2240.36            Jn.2240.36A 23 2406 2078 124 12 2344 2136 30 54 2344 2136 M27 50 54 125
111		 16
18		 2000
1998		 1984
1980		 100 0.5 1044
1041
Jn.2500.36            Jn.2500.36A 24 2666 2342 124 12 2604 2396 30 60 2604 2396 M27 50 60 126
113		 18
20		 2268
2260		 2250
2240		 100 0.5 1132
1148
Jn.2500.45            Jn.2500.45A 25 2696 2308 150 14 2626 2374 33 60 2626 2374 M30 56 60 124
111		 18
20		 2232
2220		 2214
2200		 122 0.5 1621
1654
Jn.2800.45            Jn.2800.45A 26 2996 2608 150 14 2926 2674 33 66 2926 2674 M30 56 60 140
126		 18
20		 2520
2520		 2502
2500		 122 0.5 1871
1857
Jn.3150.45            Jn.3150.45A 27 3346 2958 150 14 3276 3024 33 72 3276 3024 M30 56 72 143
130		 20
22		 2860
2860		 2840
2838		 122 0.5 2144
2129
Jn.3550.45            Jn.3550.45A 28 3746 3358 150 14 3676 3424 33 78 3676 3424 M30 56 78 163
130		 20
25		 3260
3250		 3240
3225		 122 0.5 2425
2437
Jn.4000.45            Jn.4000.45A 29 4196 3808 150 14 4126 3874 33 80 4126 3874 M30 56 80 169
148		 22
25		 3718
3700		 3696
3675		 122 0.5 2683
2763

The main function of the slewing bearing is to provide smooth and precise rotational motion to ensure the accurate positioning and normal function of medical equipment. Since the requirements for precision and reliability in the medical field are very high, slewing bearings play an important role in improving the performance and efficiency of medical equipment.

The post Helical Gear Precision Slewing Bearing For Medical Equipment appeared first on ZZ.

]]> Single cross roller slewing bearing https://www.precisionslewingbearing.com/product/single-cross-rollerseries-j/ Mon, 05 Aug 2019 06:58:08 +0000 http://www.precisionslewingbearing.com/?post_type=product&p=2027 The J series use the structure of the cross roller to provide high precision with high load capacity. It is mainly used in the construction industry, such as concrete pump trucks, tower cranes and wheel cranes.

The post Single cross roller slewing bearing appeared first on ZZ.

]]>



The J series use the structure of the cross roller to provide high precision with high load capacity. It is mainly used in the construction industry, such as concrete pump trucks, tower cranes and wheel cranes.

Note:

  • n1 is No. of lube holes, the user can specify the lube hole position.
  • n-φ can be changed to threading holes, hole diameter M, thread depth 2M.
  • There are standard products in the catalog, and the inner and outer diameters are random tolerances. If there is a locating requirement for slewing bearing, please indicate the site and tolerance.
  • It is standard type of our products, if you need more please contact with engineer.
No. Curve Ring Dimension Dimension of Mounting hole N.W
kg
Through(Tpye A) Thread（Type B、C、D）
D dn H h Du Dn φ n Du Dn d1 T n
mm mm mm
JU.400.12 1 482 318 60 10 448 352 15 12 448 352 M14 28 12 42
JU.450.12 2 532 368 60 10 498 402 15 12 498 402 M14 28 12 47
JU.500.12 3 582 418 60 10 548 452 15 14 548 452 M14 28 14 53
JU.560.12 4 642 478 60 10 608 512 15 14 608 512 M14 28 14 58
JU.560.14 5 656 464 70 10 618 502 17 14 618 502 M16 30 14 72
JU.630.14 6 726 534 70 10 688 572 17 16 688 572 M16 30 16 80
JU.710.14 7 806 614 70 10 768 652 17 18 768 652 M16 30 18 91
JU.800.14 8 896 704 70 10 858 742 17 20 858 742 M16 30 20 102
JU.800.18 9 908 692 78 10 864 736 22 18 864 736 M20 36 18 130
JU.900.18 10 1008 792 78 10 964 836 22 20 964 836 M20 36 20 146
JU.1000.18 11 1108 892 78 10 1064 936 22 24 1064 936 M20 36 24 162
JU.1000.22 12 1124 876 90 10 1074 926 24 24 1074 926 M22 40 24 212
JU.1120.22 13 1244 996 90 10 1194 1046 24 28 1194 1046 M22 40 28 237
JU.1250.22 14 1374 1126 90 10 1324 1176 24 32 1324 1176 M22 40 32 264
JU.1400.22 15 1524 1276 90 10 1474 1326 24 36 1474 1326 M22 40 36 285
JU.1250.28 16 1394 1108 102 12 1336 1164 26 32 1336 1164 M24 45 32 351
JU.1400.28 17 1544 1258 102 12 1486 1314 26 36 1486 1314 M24 45 36 393
JU.1600.28 18 1744 1458 102 12 1686 1514 26 40 1686 1514 M24 45 40 455
JU.1800.28 19 1944 1658 102 12 1886 1714 26 44 1886 1714 M24 45 44 507
JU.1600.36 20 1766 1434 124 12 1704 1496 30 40 1704 1496 M27 50 40 647
JU.1800.36 21 1966 1634 124 12 1904 1696 30 44 1904 1696 M27 50 44 730
JU.2000.36 22 2166 1834 124 12 2104 1896 30 48 2104 1896 M27 50 48 812
JU.2240.36 23 2406 2074 124 12 2344 2136 30 54 2344 2136 M27 50 54 909
JU.2500.36 24 2666 2334 124 12 2604 2396 30 60 2604 2396 M27 50 60 1015
JU.2500.45 25 2696 2304 150 14 2626 2374 33 60 2626 2374 M30 56 60 1457
JU.2800.45 26 2996 2604 150 14 2926 2674 33 66 2926 2674 M30 56 66 1634
JU.3150.45 27 3346 2954 150 14 3276 3024 33 72 3276 3024 M30 56 72 1843
JU.3550.45 28 3746 3354 150 14 3676 3424 33 78 3676 3424 M30 56 78 2082
JU.4000.45 29 4196 3804 150 14 4126 3874 33 80 4126 3874 M30 56 80 2360

External gear

No. Curve Ring Dimension Dimension of Mounting hole Gear Parameter N.W
kg
Through Thread
D dn H h Du Dn φ n Du Dn d1 T n z m d da L X
mm mm mm mm
JW.400.12             JW.400.12A 1 480 318 60 10 448 352 15 12 448 352 M14 28 12 143   125 3.5     4 500.5 500 504   504 44 -0.5 45     46
JW.450.12             JW.450.12A 2 530 368 60 10 498 402 15 12 498 402 M14 28 12 157   138 3.5     4 549.5 552 553   556 44 -0.5 51     52
JW.500.12             JW.500.12A 3 580 418 60 10 548 452 15 14 548 452 M14 28 14 150   121 4       5 600   605 604   610 44 -0.5 58     58
JW.560.14             JW.560.14A 4 640 478 60 10 608 512 15 14 608 512 M14 28 14 165   133 4       5 660   665 664   670 44 -0.5 65     66
JW.630.14             JW.630.14A 5 654 464 70 10 618 502 17 14 618 502 M16 30 14 169   136 4       5 676   680 680   685 50 -0.5 78     79
JW.710.14             JW.710.14A 6 724 534 70 10 688 572 17 16 688 572 M16 30 16 186   150 4       5 744   750 748   755 50 -0.5 86     88
JW.710.14             JW.710.14A 7 804 614 70 10 768 652 17 18 768 652 M16 30 18 166   139 5       6 830   834 835    840 50 -0.5 99    101
JW.800.14             JW.800.14A 8 894 704 70 10 858 742 17 20 858 742 M16 30 20 154   116 6       8 924   928 930   936 50 -0.5 114   114
JW.800.18             JW.800.18A 9 904 692 78 10 864 736 22 18 864 736 M20 36 18 156   116 6       8 936    944 942    952 58 -0.5 143   147
JW.900.18             JW.900.18A 10 1004 792 78 10 964 836 22 20 964 836 M20 36 20 130   105 8       10 1040  1050 1048  1060 58 -0.5 162   168
JW.1000.18             JW.1000.18A 11 1104 892 78 10 1064 936 22 24 1064 936 M20 36 24 143   115 8      10 1144  1150 1152  1160 58 -0.5 182   185
JW.1000.22             JW.1000.22A 12 1120 876 90 10 1074 926 24 24 1074 926 M22 40 24 144   116 8      10 1152  1160 1160  1170 70 -0.5 227   232
JW.1120.22             JW.1120.22A 13 1240 996 90 10 1194 1046 24 28 1194 1046 M22 40 28 129   108 10     12 1290 1296 1300 1308 70 -0.5 272   275
JW.1250.22             JW.1250.22A 14 1370 1126 90 10 1324 1176 24 32 1324 1176 M22 40 32 142   119 10     12 1420 1428 1430 1440 70 -0.5 302   309
JW.1400.22             JW.1400.22A 15 1520 1276 90 10 1474 1326 24 36 1474 1326 M22 40 36 131   113 12     14 1572 1582 1584 1596 70 -0.5 337   347
JW.1250.28             JW.1250.28A 16 1390 1108 102 12 1336 1164 26 32 1336 1164 M24 45 32 144   120 10     12 1440 1440 1450 1452 80 -0.5 396   392
JW.1400.22             JW.1400.22A 17 1540 1258 102 12 1486 1314 26 36 1486 1314 M24 45 36 133   114 12      14 1596 1596 1608 1610 80 -0.5 448   443
JW.1600.28             JW.1600.28A 18 1740 1458 102 12 1686 1514 26 40 1686 1514 M24 45 40 150   129 12     14 1800 1806 1812 1820 80 -0.5 528   534
JW.1800.28             JW.1800.28A 19 1940 1658 102 12 1886 1714 26 44 1886 1714 M24 45 44 143    126 14     16 2002 2016 2016 2032 80 -0.5 583   607
JW.1600.36             JW.1600.36A 20 1762 1434 102 12 1704 1496 30 40 1704 1496 M27 50 40 151   130 12     14 1812 1820 1824 1834 100 -0.5 714   727
JW.1800.36             JW.1800.36A 21 1964 1634 124 12 1904 1696 30 44 1904 1696 M27 50 44 145   127 14     16 2030 2032 2044 2048 100 -0.5 845   843
JW.2000.36             JW.2000.36A 22 2162 1834 124 12 2104 1896 30 48 2104 1896 M27 50 48 139   124 16     18 2224 2232 2240 2250 100 -0.5 912   927
JW.2000.36             JW.2000.36A 23 2402 2074 124 12 2344 2136 30 54 2344 2136 M27 50 54 154   138 16     18 2464 2484 2480 2502 100 -0.5 1020 1078
JW.2500.36             JW.2500.36A 24 2662 2334 124 12 2604 2396 30 60 2604 2396 M27 50 60 152   137 18     20 2736 2740 2754 2760 100 -0.5 1171 1175
JW.2500.45             JW.2500.45A 25 2696 2304 150 14 2626 2374 33 60 2626 2374 M30 56 60 154   139 18     20 2772 2780 2790 2800 122 -0.5 1677 1701
JW.2800.45             JW.2800.45A 26 2992 2604 150 14 2926 2674 33 66 2926 2674 M30 56 66 170   154 18     20 3060 3080 3078 3100 122 -0.5 1817 1904
JW.3150.45             JW.3150.45A 27 3342 2954 150 14 3276 3024 33 72 3276 3024 M30 56 72 171   156 20     22 3420 3432 3440 3454 122 -0.5 2087 2139
JW.3550.45             JW.3550.45A 28 3742 2354 150 14 3676 3424 33 78 3676 3424 M30 56 78 191   154 20     25 3820 3850 3840 3875 122 -0.5 2355 2500
JW.4000.45             JW.4000.45A 29 4200 3804 150 14 4126 3874 33 80 4126 3874 M30 56 80 195   172 22     25 4290 4300 4312 4325 122 -0.5 2787 2827

Internal gear

No. Curve Ring Dimension Dimension of Mounting hole Gear Parameter N.W
kg
Through Thread
D dn H h Du Dn φ n Du Dn d1 T n z m d da L X
mm mm mm mm
Jn.400.12             Jn.400.12A 1 482 320 60 10 448 352 15 12 448 352 M14 28 12 86
75		 3.5
4		 301
300		 297.5
296		 44 0.5 42
43
Jn.450.12             Jn.450.12A 2 532 370 60 10 498 402 15 12 498 402 M14 28 12 100
87		 3.5
4		 350
348		 346.5
344		 44 0.5 50
51
Jn.500.12             Jn.500.12A 3 582 420 60 10 548 452 15 14 548 452 M14 28 14 100
79		 4
5		 400
395		 396
390		 44 0.5 57
57
Jn.560.14             Jn.560.14A 4 642 480 60 10 608 512 15 14 608 512 M14 28 14 115
91		 4
5		 460
455		 456
450		 44 0.5 64
65
Jn.630.14             Jn.630.14A 5 656 468 70 10 618 502 17 14 618 502 M16 30 14 111
88		 4
5		 444
440		 440
435		 50 0.5 76
77
Jn.710.14             Jn.710.14A 6 726 538 70 10 688 572 17 16 688 572 M16 30 16 129
102		 4
5		 516
510		 512
505		 50 0.5 84
86
Jn.710.14             Jn.710.14A 7 806 618 70 10 768 652 17 18 768 652 M16 30 18 118
98		 5
6		 590
588		 585
582		 50 0.5 97
97
Jn.800.14             Jn.800.14A 8 896 708 70 10 858 742 17 20 858 742 M16 30 20 113
84		 6
8		 678
672		 672
664		 50 0.5 110
111
Jn.800.18             Jn.800.18A 9 908 694 78 10 864 736 22 18 864 736 M20 36 18 110
82		 6
8		 660
656		 654
648		 58 0.5 142
142
Jn.900.18             Jn.900.18A 10 1008 794 78 10 964 836 22 20 964 836 M20 36 20 94
75		 8
10		 752
750		 744
740		 58 0.5 163
162
Jn.1000.18             Jn.1000.18A 11 1108 894 78 10 1064 936 22 24 1064 936 M20 36 24 107
85		 8
10		 856
850		 848
840		 58 0.5 178
179
Jn.1000.22             Jn.1000.22A 12 1124 880 90 10 1074 926 24 24 1074 926 M22 40 24 105
84		 8
10		 840
840		 832
830		 70 0.5 230
227
Jn.1120.22            Jn.1120.22A 13 1244 1000 90 10 1194 1046 24 28 1194 1046 M22 40 28 95
79		 10
12		 950
948		 940
936		 70 0.5 263
262
Jn.1250.22            Jn.1250.22A 14 1374 1130 90 10 1324 1176 24 32 1324 1176 M22 40 32 108
90		 10
12		 1080
1080		 1070
1068		 70 0.5 294
290
Jn.1400.22            Jn.1400.22A 15 1524 1280 90 10 1474 1326 24 36 1474 1326 M22 40 36 102
87		 12
14		 1224
1218		 1212
1204		 70 0.5 333
336
Jn.1250.28            Jn.1250.28A 16 1394 1110 102 12 1336 1164 26 32 1336 1164 M24 45 32 106
88		 10
12		 1060
1056		 1050
1044		 80 0.5 388
388
Jn.1400.28            Jn.1400.28A 17 1544 1260 102 12 1486 1314 26 36 1486 1314 M24 45 36 100
86		 12
14		 1200
1204		 1188
1190		 80 0.5 444
434
Jn.1600.28            Jn.1600.28A 18 1744 1460 102 12 1686 1514 26 40 1686 1514 M24 45 40 117
100		 10
14		 1404
1400		 1392
1386		 80 0.5 509
511
Jn.1800.28            Jn.1800.28A 19 1944 1660 102 12 1886 1714 26 44 1886 1714 M24 45 44 114
99		 14
16		 1596
1584		 1582
1568		 80 0.5 576
591
Jn.1600.36            Jn.1600.36A 20 1766 1438 124 12 1704 1496 30 40 1704 1496 M27 50 40 115
98		 12
14		 1380
1372		 1368
1358		 100 0.5 714
723
Jn.1800.36            Jn.1800.36A 21 1966 1638 124 12 1904 1696 30 44 1904 1696 M27 50 44 113
98		 14
16		 1582
1568		 1568
1552		 100 0.5 794
818
Jn.2000.36            Jn.2000.36A 22 2166 1842 124 12 2104 1896 30 48 2104 1896 M27 50 48 111
98		 16
18		 1776
1764		 1760
1746		 100 0.5 891
913
Jn.2240.36            Jn.2240.36A 23 2406 2078 124 12 2344 2136 30 54 2344 2136 M27 50 54 125
111		 16
18		 2000
1998		 1984
1980		 100 0.5 1044
1041
Jn.2500.36            Jn.2500.36A 24 2666 2342 124 12 2604 2396 30 60 2604 2396 M27 50 60 126
113		 18
20		 2268
2260		 2250
2240		 100 0.5 1132
1148
Jn.2500.45            Jn.2500.45A 25 2696 2308 150 14 2626 2374 33 60 2626 2374 M30 56 60 124
111		 18
20		 2232
2220		 2214
2200		 122 0.5 1621
1654
Jn.2800.45            Jn.2800.45A 26 2996 2608 150 14 2926 2674 33 66 2926 2674 M30 56 60 140
126		 18
20		 2520
2520		 2502
2500		 122 0.5 1871
1857
Jn.3150.45            Jn.3150.45A 27 3346 2958 150 14 3276 3024 33 72 3276 3024 M30 56 72 143
130		 20
22		 2860
2860		 2840
2838		 122 0.5 2144
2129
Jn.3550.45            Jn.3550.45A 28 3746 3358 150 14 3676 3424 33 78 3676 3424 M30 56 78 163
130		 20
25		 3260
3250		 3240
3225		 122 0.5 2425
2437
Jn.4000.45            Jn.4000.45A 29 4196 3808 150 14 4126 3874 33 80 4126 3874 M30 56 80 169
148		 22
25		 3718
3700		 3696
3675		 122 0.5 2683
2763

The post Single cross roller slewing bearing appeared first on ZZ.

]]> Single cross roller slewing bearing https://www.precisionslewingbearing.com/product/single-cross-roller/ Mon, 05 Aug 2019 06:37:53 +0000 http://www.precisionslewingbearing.com/?post_type=product&p=2023 HJ series slewing bearing internal rolling body is roller, which is installed by crossing. It also provides internal gear, external gear and toothless structure. It has the characteristics of small assembly clearance, high precision and stable operation. Widely used in the field of test platforms, military products, artificial intelligence.

The post Single cross roller slewing bearing appeared first on ZZ.

]]>

HJ series slewing bearing internal rolling body is roller, which is installed by crossing.It has the characteristics of small assembly clearance, high precision and stable operation. Widely used in the field of test platforms, military products, artificial intelligence.

Note:

  • n1 is No. of lube holes, the user can specify the lube hole position.
  • n-φ can be changed to threading holes, hole diameter M, thread depth 2M.
  • There are standard products in the catalog, and the inner and outer diameters are random tolerances. If there is a locating requirement for slewing bearing, please indicate the site and tolerance.
  • It is standard type of our products, if you need more please contact with engineer.
Drawing No . Ring Dimension Mounting Hole Dimension Other Dimension Gear Parameter External Gear Internal Gear Weight Curve
OD ID Total height External bolt circle Dia. Iinternal bolt circle Dia. No. of mounting holes Iinternal bolt Dia. No. of grease Nipples Ring height Distance at top External/internal ring Width of Tooth Module Modification coefficient Addendum No. of gear Modification coefficient Addendum No. of gear
No Gear External Gear Internal Gear D
(mm)		 d
(mm)		 H
（mm）		 D1
（mm）		 D2
（mm）		 n Φ
（mm）		 n1 H1
（mm）		 h
（mm）		 b
（mm）		 m x De
（mm）		 Z x De
（mm）		 Z kg 　
HJB.20.625 HJW.20.625 HJN.20.625 725 525 80 685 565 18 18 3 68 12 60 5 +1.25 751.9 146 +0.35 498.8 101 100 1
HJB.20.625 HJW.20.625A HJN.20.625A 725 525 80 685 565 18 18 3 68 12 60 6 +1.00 755.5 122 +0.35 496.7 84 100 1
HJB.20.720 HJW.20.720 HJN.20.720 820 620 80 780 660 18 18 3 68 12 60 6 +1.25 860.3 139 +0.35 586.6 99 120 2
HJB.20.720 HJW.20.720A HJN.20.720A 820 620 80 780 660 18 18 3 68 12 60 8 +0.85 861.1 104 +0.35 582.3 74 120 2
HJB.30.820 HJW.30.820 HJN.30.820 940 705 95 893 749 24 20 4 83 12 70 6 +1.25 980.4 159 +0.35 664.5 112 210 3
HJB.30.820 HJW.30.820A HJN.30.820A 940 705 95 893 749 24 20 4 83 12 70 10 +0.85 986.2 95 +0.35 658 67 210 3
HJB.30.880 HJW.30.880 HJN.30.880 1000 760 95 956 800 24 20 4 83 12 70 8 +1.0 1047.5 127 +0.35 718.2 91 230 4
HJB.30.880 HJW.30.880A HJN.30.880A 1000 760 95 956 800 24 20 4 83 12 70 10 0.85 1046.3 101 +0.35 707.9 72 230 4
HJB.30.1020 HJW.30.1020 HJN.30.1020 1170 875 95 1120 930 24 22 4 80 15 70 8 +1.25 1219.3 148 +0.35 830.1 105 300 5
HJB.30.1020 HJW.30.1020A HJN.30.1020A 1170 875 95 1120 930 24 22 4 80 15 70 10 +1.00 1219.2 118 +0.35 827.8 84 300 5
HJB.36.1220 HJW.36.1220 HJN.36.1220 1365 1075 120 1310 1130 36 24 6 105 15 90 10 +1.25 1424.9 138 +0.35 1027.8 104 450 6
HJB.36.1220 HJW.36.1220A HJN.36.1220A 1365 1075 120 1310 1130 36 24 6 105 15 90 12 +0.85 1435.9 116 +0.35 1017.3 86 450 6
HJB.36.1250 HJW.36.1250 HJN.36.1250 1400 1090 120 1350 1150 36 26 6 105 15 90 10 +0.35 1443 143 +0.35 1037 105 520 7
HJB.36.1250 HJW.36.1250A HJN.36.1250A 1400 1090 120 1350 1150 36 26 6 105 15 90 12 +0.85 1449.6 117 +0.35 1028.8 87 520 7
HJB.36.1435 HJW.36.1435 HJN.36.1435 1595 1278 120 1535 1335 36 26 6 105 15 90 12 +1.0 1655.5 134 +0.35 1221.2 103 610 8
HJB.36.1435 HJW.36.1435A HJN.36.1435A 1595 1278 120 1535 1335 36 26 6 105 15 90 14 +0.85 1661.2 115 +0.35 1214.8 88 610 8
HJB.45.1540 HJW.45.1540 HJN.45.1540 1720 1360 140 1660 1420 42 26 6 122 18 110 12 +1.4 1780.8 144 +0.35 1293.1 109 732 9
HJB.45.1540 HJW.45.1540A HJN.45.1540A 1720 1360 140 1660 1420 42 26 6 122 18 110 14 +1.0 1791.1 124 +0.35 1284.8 93 732 9
HJB.45.1700 HJW.45.1700 HJN.45.1700 1875 1525 140 1815 1585 42 29 6 122 18 110 14 +1.0 1945.4 135 +0.35 1452.7 105 844 10
HJB.45.1700 HJW.45.1700A HJN.45.1700A 1875 1525 140 1815 1585 42 29 6 122 18 110 16 +1.0 1950.8 118 +0.35 1452.3 92 844 10
HJB.45.1880 HJW.45.1880 HJN.45.1880 2100 1665 160 2030 1740 48 32 6 140 20 118 14 +1.25 2189.8 152 +0.35 1592.6 115 1400 11
HJB.45.1880 HJW.45.1880A HJN.45.1880A 2100 1665 160 2030 1740 48 32 6 140 20 118 18 +1.0 2194.6 118 +0.35 1579.9 89 1400 11
HJB.45.2115 HJW.45.2115 HJN.45.2115 2325 1900 160 2245 1980 48 32 6 140 20 115 16 +1.25 2406.5 146 +0.35 1804.1 114 1600 12
HJB.45.2115 HJW.45.2115A HJN.45.2115A 2325 1900 160 2245 1980 48 32 6 140 20 115 20 +1.0 2418.4 117 +0.35 1795.4 91 1600 12
HJB.45.2370 HJW.45.2370 HJN.45.2370 2600 2146 180 2520 2220 48 32 6 158 22 130 18 +1.25 2707.3 146 +0.35 2065.6 116 2100 13
HJB.45.2370 HJW.45.2370A HJN.45.2370A 2600 2145 180 2520 2220 48 32 6 158 22 130 22 +1.0 2704.4 119 +0.35 2040.9 94 2100 13
HJB.45.2600 HJW.45.2600 HJN.45.2600 2835 2365 180 2750 2450 54 36 6 158 22 130 18 +1.25 2941.7 159 +0.35 2263.5 127 2400 14
HJB.45.2600 HJW.45.2600A HJN.45.2600A 2835 2365 180 2750 2450 54 36 6 158 22 130 22 +1.0 2946.9 130 +0.35 2260.8 104 2400 14
HJB.50.2820 HJW.50.2820 HJN.50.2820 3085 2555 200 3000 2640 54 36 6 178 22 150 20 +1.25 3188.4 155 +0.35 2455 124 3400 15
HJB.50.2820 HJW.50.2820A HJN.50.2820A 3085 2555 200 3000 2640 54 36 6 178 22 150 25 +1.0 3198.4 124 +0.35 2444.1 99 3400 15
HJB.50.3120 HJW.50.3120 HJN.50.3120 3400 2840 200 3310 2930 54 36 6 178 22 150 22 +1.25 3507.2 155 +0.35 2722.5 125 4000 16
HJB.50.3120 HJW.50.3120A HJN.50.3120A 3400 2840 200 3310 2930 54 36 6 178 22 150 25 +1.25 3509.6 136 +0.35 2719 110 4000 16
HJB.50.3580 HJW.50.3580 HJN.50.3580 3920 3240 240 3820 3340 60 40 6 218 22 190 22 +1.25 4036.1 179 +0.35 3118.4 143 6700 17
HJB.50.3580 HJW.50.3580A HJN.50.3580A 3920 3240 240 3820 3340 60 40 6 218 22 190 25 +1.25 4035.6 157 +0.35 3118.8 126 6700 17
HJB.50.4030 HJW.50.4030 HJN.50.4030 4370 3690 240 4270 3790 66 40 6 218 22 190 22 +1.25 4520.6 201 +0.35 3558.3 163 7700 18
HJB.50.4030 HJW.50.4030A HJN.50.4030A 4370 3690 240 4270 3790 66 40 6 218 22 190 28 +1.25 4522 157 +0.35 3549 128 7700 18
HJB.50.4540 HJW.50.4540 HJN.50.4540 4860 4210 240 4760 4310 72 40 6 218 22 190 22 +1.25 4983 222 +0.35 4042.2 185 8760 19
HJB.50.4540 HJW.50.4540A HJN.50.4540A 4860 4210 240 4760 4310 72 40 6 218 22 190 30 +1.25 4992.9 162 +0.35 4042.4 136 8760 19

The post Single cross roller slewing bearing appeared first on ZZ.

]]>
